Project structure

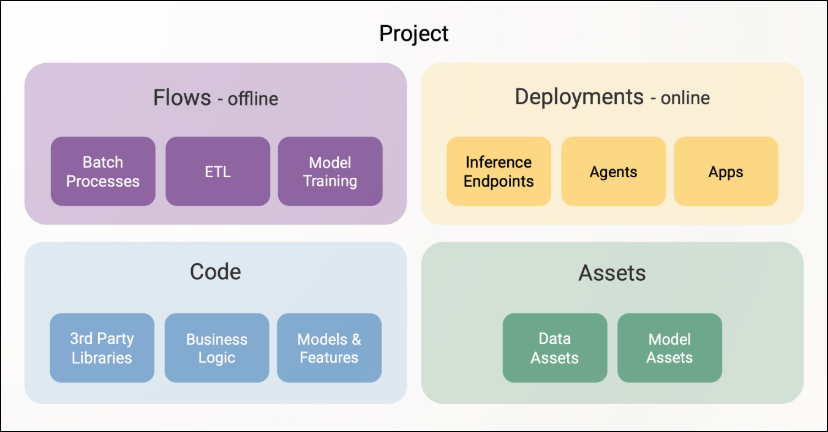

After setting up an empty project, you can begin adding your own components. Fundamentally, all projects are composed of these top-level components:

Flows

Flows refer to Metaflow flows, often interconnected through events. They form the backbone of your projects, handling data processing and ETL, model training and finetuning, autonomous and batch inference, and any other types of background processing and high-performance computing. In projects, flows are stored under a subdirectory flows, one Metaflow flow (named flow.py) per subdirectory, alongside any supporting Python modules and packages. As a best practice, it is useful to add a README.md file for each flow describing its role. They will be surfaced in the UI as well.

Writing a `ProjectFlow`

Importantly, project flows should subclass from ProjectFlow instead of Metaflow’s standard FlowSpec. In other words, simply author your flows like this:

from obproject import ProjectFlow

class MyFlow(ProjectFlow):
   ...

This leverages Metaflow’s BaseFlow pattern to enrich flows with functionality related to the project structure. Besides this small detail, you can use all Metaflow features in your flows. A typical flow hierarchy in a project repository ends up looking like this:

flows

etl

flow.py

README.md

feature_transformations.py

sql

process_data.sql

train_model

flow.py

README.md

model.py

Deployments

Deployments are microservices that serve requests through real-time APIs. Common use cases:

Flows and deployments working together

The platform’s strength comes from the tight connection between flows and deployments, bridging the offline and online worlds:

A flow can continuously update a database for RAG, which a deployed agent then uses in real time.
A deployed app can monitor model performance and trigger a retraining flow.
A flow can deploy a model endpoint programmatically, for instance, whenever a new model has been trained.

Deployments in a project

In your project, place deployments in the deployments directory. Each deployment is defined by a configuration file, config.yml, as documented in Deployments deep dive. You can define dependencies for the deployment in a standard requirements.txt or pyproject.toml. As with flows, it is recommended to add a README.md for each deployment. The project hierarchy looks like this:

deployments

monitoring_dashboard

streamlit_app.py

config.yml

pyproject.toml

README.md

model_endpoint

fastapi_server.py

config.yml

pyproject.toml

README.md

support_agent

agent.py

config.yml

pyproject.toml

README.md

Deployment commands

When obproject-deploy deploys apps, it runs from the project root directory, so commands in your config.yml must use paths relative to the project root, not the deployment directory. For example, if your project structure is:

my_project

deployments

dashboard

app.py

config.yml

api

main.py

config.yml

src

shared_utils.py

Write the config.yml commands with paths relative to the project root:

# deployments/dashboard/config.yml
name: dashboard
commands:
  - streamlit run deployments/dashboard/app.py

# deployments/api/config.yml
name: api
commands:
  - gunicorn --workers 2 --bind 0.0.0.0:8000 deployments.api.main:app

Running from the project root has two benefits:

Shared imports: Apps can import modules from src/ directly (from my_module import ...).
Consistency: All paths are relative to the same root, making them predictable.

Use file paths for CLI tools (streamlit run deployments/dashboard/app.py) and Python module paths for WSGI/ASGI servers (gunicorn ... deployments.api.main:app).

Code

Effective management of software dependencies is essential for building production-quality projects and enabling rapid iteration and collaboration. A project has one platform configuration file, obproject.toml, and one or more dependency manifests, such as pyproject.toml or requirements.txt. The platform configuration says what the project is and how it deploys; the dependency manifests say what packages the code needs: A typical project consists of multiple layers of software dependencies:

Code defining flows and deployments, organized into subdirectories.
Project-level shared libraries under the src directory.
Organization-level libraries shared across projects.
Third-party dependencies, such as pandas and torch, declared at the flow, deployment, or project level.

For example, consider the following project that trains a fraud detection model and deploys it for real-time inference:

fraud_detection_model

obproject.toml

pyproject.toml

README.md

src

feature_encoders

__init__.py

feature_encoder.py

flows

trainer

flow.py

mymodel.py

README.md

deployments

inference

fastapi_server.py

config.yml

README.md

Code for flows and deployments

In addition to the entrypoint file (flow.py) or deployment server, each flow or deployment can include supporting modules and packages, such as mymodel.py in the tree above.

Project-level shared libraries

Place libraries shared within a project under the src directory, as packages. For example, a feature_encoders package used both during training and inference ensures offline-online consistency of features:

src

feature_encoders

__init__.py

feature_encoder.py

In each package’s __init__.py, include:

METAFLOW_PACKAGE_POLICY = 'include'

This ensures the package gets included in the Metaflow code package when deployed. When you run obproject-deploy, it automatically sets up PYTHONPATH so your flows and apps can import these modules directly, such as from feature_encoders import MyEncoder.

Organization-level libraries

Libraries shared across projects can be handled in two ways:

If you can set METAFLOW_PACKAGE_POLICY in packages, simply pip install them as usual or add them to your PYTHONPATH. Once you import them in your flows and deployments, they get packaged automatically. This is a convenient option for private packages, even if they are not pip install-able from a package repository.
If the shared libraries are pushed to a package repository, private or public, treat them like third-party dependencies.

Declaring dependencies

You can declare dependencies at three levels in a project:

Per flow or step: Use Metaflow’s @pypi or @conda decorators in your flow code.
Per deployment: Add a requirements.txt or pyproject.toml to the deployment directory, or declare dependencies in its config.yml.
Project-wide: Place a pyproject.toml at the root of the project next to obproject.toml. For example:

[project]
dependencies = [
    "pandas==2.2.2",
    "fastapi==0.116.1"
]

A project-wide pyproject.toml is applied to all flows through @pypi_base with no additional configuration, which is handy if you want every flow to use the exact same set of dependencies. It is also applied to deployments, unless a deployment declares its own dependencies in config.yml. When the project is deployed, the platform uses Fast Bakery to bake the requirements into a container image automatically.

Assets

Projects track data and models as assets: references built on Metaflow artifacts that add metadata and tracking on top, giving you a model registry and data lineage for the project. By default, obproject-deploy looks for model assets in models/ and data assets in data/. For more information, see Project assets.

If the default asset directory names conflict with existing directories in your project, such as a models/ directory used for data model schemas, customize them in obproject.toml:

[obproject_dirs]
models = "ml_models"
data = "datasets"

Local development

ProjectFlow automatically applies @pypi_base when your project has a pyproject.toml with dependencies. This ensures reproducible environments for both local and remote runs, but requires specifying an environment.

Running flows locally

When @pypi_base is applied, you need to specify an environment:

python flows/train/flow.py --environment=fast-bakery run

Skipping dependency isolation

In some contexts, you might want to continue subclassing an obproject.ProjectFlow but turn off the automatic application of @pypi_base. For local iteration using your existing Python environment, you can skip the @pypi_base decorator:

Environment variable
Shell profile
Project config

Set OBPROJECT_SKIP_PYPI_BASE per run:

OBPROJECT_SKIP_PYPI_BASE=1 python flows/train/flow.py run

Export OBPROJECT_SKIP_PYPI_BASE in your shell profile, such as ~/.bashrc or ~/.zshrc, to skip dependency isolation persistently:

export OBPROJECT_SKIP_PYPI_BASE=1

Set include_pyproject_toml to false in obproject.toml to skip dependency isolation for the project:

[dependencies]
include_pyproject_toml = false

Skipping @pypi_base is convenient when iterating locally. For production deployments through CI/CD, always apply dependencies with --environment=fast-bakery to ensure reproducible builds regardless of your local settings.

CI/CD integration

Projects integrate seamlessly with CI/CD platforms to enable continuous deployment. The obproject-deploy CLI utility available via pip install obproject-utils automates deployment of flows and applications, making it straightforward to set up GitOps workflows.

Starting with ob-project-utils==0.2.35, every flow deployed by obproject-deploy carries a commit-hash:<SHA> tag and a CI-provider-specific run ID tag, such as obproject-deploy-gh-action-run:<ID> for GitHub Actions. Use these tags to trace a running workflow back to the commit and CI build that deployed it. For more information, see Deployment lineage tags.

GitHub Actions
Azure DevOps
CircleCI
GitLab CI/CD

GitHub Actions can deploy your project automatically when code is pushed to specific branches. Create .github/workflows/deploy.yml:

name: Deploy project

on:
  push:
    branches:
    - main
    - develop
    - 'feature/**'

env:
  GH_HEAD_REF: ${{ github.head_ref }}
  GH_REF: ${{ github.ref_name }}

permissions:
  id-token: write
  contents: read
  pull-requests: write

jobs:
  deploy:
    name: Deploy Project
    runs-on: ubuntu-latest

    steps:
    - uses: actions/checkout@v4
      with:
        ref: ${{ github.event.pull_request.head.sha }}
        fetch-depth: 0

    - name: Set up Python
      uses: actions/setup-python@v1
      with:
        python-version: 3.12

    - name: Install dependencies
      run: |
        python3 -m pip install -U requests
        python3 -m pip install outerbounds pyyaml
        python3 -m pip install -U ob-project-utils
    - name: Configure the platform
      run: |
        PROJECT_NAME=$(yq .project obproject.toml)
        DEFAULT_CICD_USER="${PROJECT_NAME//_/-}-cicd"
        PLATFORM=$(yq .platform obproject.toml)
        CICD_USER=$(yq ".cicd_user // \"$DEFAULT_CICD_USER\"" obproject.toml)
        PERIMETER="default"
        echo "Deployment target:"
        echo "  Platform: $PLATFORM"
        echo "  CI/CD User: $CICD_USER"
        echo "  Perimeter: $PERIMETER"
        outerbounds service-principal-configure \
          --name $CICD_USER \
          --deployment-domain $PLATFORM \
          --perimeter $PERIMETER \
          --github-actions

    - name: Deploy Project
      env:
        COMMIT_URL: "https://github.com/${{ github.repository }}/commit/"
        CI_URL: "https://github.com/${{ github.repository }}/actions/runs/${{ github.run_id }}"
        GH_TOKEN: ${{ secrets.GITHUB_TOKEN }}
        COMMENTS_URL: ${{ github.event.pull_request.comments_url }}
        PYTHONUNBUFFERED: 1
      run: obproject-deploy

This workflow:

Triggers on pushes to main, develop, and feature branches
Authenticates as a machine user with GitHub’s OIDC token
Deploys flows, apps, and assets as configured

Use per-component obproject_deploy.toml files to control which branches deploy each app or flow. For details, see Project lifecycle.

If you do not use obproject-deploy, you need to determine when to invoke outerbounds service-principal-configure in your CI runs.

Azure DevOps Pipelines support projects with automatic branch detection and JWT-based authentication. Create azure-pipelines.yml:

trigger:
  branches:
    include:
    - main
    - develop
    - feature/*

pool:
  vmImage: ubuntu-latest

steps:
- checkout: self

- task: AzureCLI@2
  displayName: 'Configure the platform'
  inputs:
    azureSubscription: '<AZURE_SERVICE_CONNECTION>'  # Replace with your Azure service connection name
    addSpnToEnvironment: true
    scriptType: bash
    scriptLocation: inlineScript
    inlineScript: |
      # Check if yq is available
      which yq || (echo "yq not found, installing..." && wget -qO /usr/local/bin/yq https://github.com/mikefarah/yq/releases/latest/download/yq_linux_amd64 && chmod +x /usr/local/bin/yq)

      PROJECT_NAME=$(yq .project obproject.toml)
      DEFAULT_CICD_USER="${PROJECT_NAME//_/-}-cicd"
      PLATFORM=$(yq .platform obproject.toml)
      CICD_USER=$(yq ".cicd_user // \"$DEFAULT_CICD_USER\"" obproject.toml)
      PERIMETER="default"
      echo "Deployment target:"
      echo "  Platform: $PLATFORM"
      echo "  CI/CD User: $CICD_USER"
      echo "  Perimeter: $PERIMETER"
      python -m pip install -U pyyaml requests toml 'outerbounds[azure]' ob-project-utils
      outerbounds service-principal-configure \
        --name $CICD_USER \
        --deployment-domain $PLATFORM \
        --perimeter $PERIMETER \
        --jwt-token $idToken

- script: |
    obproject-deploy

  displayName: 'Deploy Project'
  env:
    # https://learn.microsoft.com/en-us/azure/devops/pipelines/process/variables?view=azure-devops
    SYSTEM_ACCESSTOKEN: $(System.AccessToken)
    PYTHONUNBUFFERED: 1
    # Pass all Azure DevOps variables that the deploy script needs
    BUILD_SOURCEBRANCH: $(Build.SourceBranch)
    SYSTEM_PULLREQUEST_SOURCEBRANCH: $(System.PullRequest.SourceBranch)
    SYSTEM_COLLECTIONURI: $(System.CollectionUri)
    SYSTEM_TEAMPROJECT: $(System.TeamProject)
    BUILD_REPOSITORY_NAME: $(Build.Repository.Name)
    BUILD_REPOSITORY_ID: $(Build.Repository.ID)
    BUILD_BUILDID: $(Build.BuildId)
    SYSTEM_PULLREQUEST_PULLREQUESTID: $(System.PullRequest.PullRequestId)

The pipeline automatically detects the current branch through Azure’s built-in environment variables (BUILD_SOURCEBRANCH, SYSTEM_PULLREQUEST_SOURCEBRANCH).

CircleCI supports projects using OIDC tokens for secure authentication. Create .circleci/config.yml:

version: 2.1

jobs:
  deploy:
    docker:
      - image: cimg/python:3.12
    steps:
      - checkout

      - run:
          name: Install dependencies
          command: |
            python -m pip install -U pip
            python -m pip install -U outerbounds ob-project-utils requests pyyaml

      - run:
          name: Configure the platform
          command: |
            # Read config using Python (more portable than yq)
            if [ -f "obproject_multi.toml" ]; then
              echo "Multi-project repository detected"
              CICD_USER=$(python -c "import tomllib; print(tomllib.load(open('obproject_multi.toml', 'rb'))['cicd']['user'])")
              PLATFORM=$(python -c "import tomllib; print(tomllib.load(open('obproject_multi.toml', 'rb'))['cicd']['platform'])")
              PERIMETER=$(python -c "import tomllib; print(tomllib.load(open('obproject_multi.toml', 'rb'))['cicd'].get('perimeter', 'default'))")
            else
              echo "Single-project repository detected"
              PROJECT_NAME=$(python -c "import tomllib; print(tomllib.load(open('obproject.toml', 'rb'))['project'])")
              PLATFORM=$(python -c "import tomllib; print(tomllib.load(open('obproject.toml', 'rb'))['platform'])")
              CICD_USER="${PROJECT_NAME}-cicd"
              PERIMETER="default"
            fi

            outerbounds service-principal-configure \
              --name $CICD_USER \
              --deployment-domain $PLATFORM \
              --perimeter $PERIMETER \
              --jwt-token $CIRCLE_OIDC_TOKEN_V2

      - run:
          name: Deploy Project
          command: obproject-deploy
          environment:
            PYTHONUNBUFFERED: "1"

      - store_artifacts:
          path: deployment_summary.md
          destination: deployment-summary

workflows:
  deploy:
    jobs:
      - deploy:
          # A context is required for $CIRCLE_OIDC_TOKEN_V2 to be available.
          # The context can be empty; it just needs to exist and be referenced.
          context: platform
          filters:
            branches:
              only:
                - main

CircleCI setup requirements:

Create a machine user of type CircleCI, as described in Programmatic access with machine users.
Create a CircleCI context (it can be empty). OIDC tokens are only available to jobs that reference a context.
Reference the context in your workflow configuration.

The deploy script automatically detects CircleCI through the CIRCLECI environment variable and extracts branch information from CIRCLE_BRANCH.

GitLab CI/CD supports OIDC authentication via the id_tokens keyword. Create .gitlab-ci.yml:

stages:
  - deploy

deploy:
  stage: deploy
  image: python:3.12
  rules:
    - if: $CI_PIPELINE_SOURCE == "merge_request_event"
    - if: $CI_COMMIT_BRANCH == "main"

  # The 'aud' value must match your Anaconda Platform URL.
  # It cannot be read from obproject.toml because GitLab evaluates
  # id_tokens at pipeline creation time, before any scripts run.
  id_tokens:
    OUTERBOUNDS_ID_TOKEN:
      aud: <PLATFORM_URL>

  script:
    - wget -qO /usr/local/bin/yq https://github.com/mikefarah/yq/releases/latest/download/yq_linux_amd64 && chmod +x /usr/local/bin/yq
    - PROJECT_NAME=$(yq .project obproject.toml)
    - PLATFORM=$(yq .platform obproject.toml)
    - CICD_USER="${PROJECT_NAME//_/-}-cicd"
    - PERIMETER="default"

    - python -m pip install -U outerbounds ob-project-utils pyyaml

    - |
      outerbounds service-principal-configure \
        --name $CICD_USER \
        --deployment-domain $PLATFORM \
        --perimeter $PERIMETER \
        --jwt-token $OUTERBOUNDS_ID_TOKEN

    - obproject-deploy

GitLab setup requirements:

Create a machine user of type GitLab, as described in Programmatic access with machine users.
Update the aud value to match your Anaconda Platform URL.

The deploy script automatically detects GitLab CI through the GITLAB_CI environment variable and extracts branch information from CI_COMMIT_REF_NAME.For authentication setup and additional platforms, see the CI/CD integration guide.

Multi-project repositories

For monorepo setups with multiple independent projects, use obproject_multi.toml at the repository root:

[cicd]
user = "<MACHINE_USER_NAME>"
platform = "<PLATFORM_URL>"

[projects]
fraud_detection = "ml/fraud-detection"
recommendation = "ml/recommendation"
data_ingestion = "pipelines/ingestion"

Each project directory contains its own obproject.toml and standard project structure. When you run obproject-deploy from the repository root, it:

Detects obproject_multi.toml
Authenticates as the specified machine user
Deploys each project independently to the configured platform

Individual projects can still be deployed independently by running obproject-deploy from their directories, which will use that project’s specific obproject.toml configuration. Repository structure example:

company-ml-platform

obproject_multi.toml

fraud-detection

obproject.toml

src

models.py

feature_encoders.py

flows

deployments

recommendation

obproject.toml

src

recommenders.py

flows

deployments

pipelines

ingestion

obproject.toml

flows

Each sub-project can have its own src/ directory for shared code. Imports like from models import MyModel work because obproject-deploy sets up PYTHONPATH to include src/ for both flows and deployments. See ob-multi-project-empty for a complete example.

Branch configurations

You can map code branches to different perimeters and deployment configuration files to automate environment isolation. This is configured in obproject.toml:

platform = "<PLATFORM_URL>"
project = "fraud_detection"

# Map branches to environments (supports glob patterns)
[branch_to_environment]
"main" = "production"
"develop" = "staging"
"feature/*" = "dev"
"*" = "dev"  # Catch-all default

# Production environment (main branch)
[environments.production]
perimeter = "prod-perimeter"
deployment_config = "deployments/api/config.prod.yml"

# Staging environment (develop branch)
[environments.staging]
perimeter = "staging-perimeter"
deployment_config = "deployments/api/config.staging.yml"

# Development environment (feature/* and other branches)
[environments.dev]
perimeter = "default"
deployment_config = "deployments/api/config.yml"

When you run obproject-deploy, it:

Detects the current git branch
Maps it to an environment using glob pattern matching (first match wins)
Switches to the environment’s perimeter
Uses the environment’s deployment config for applications

This enables workflows like the following:

# Automatically deploy to the production perimeter with the prod config
git checkout main
obproject-deploy

# Automatically deploy to the staging perimeter with the staging config
git checkout develop
obproject-deploy

# Automatically deploy to the dev perimeter with the dev config
git checkout feature/new-model
obproject-deploy

Environment-specific configurations can vary resources, replicas, and settings:

# config.prod.yml - Production configuration
name: fraud-api-prod
environment:
  ENV_NAME: "production"
  LOG_LEVEL: "warning"
resources:
  cpu: "4"
  memory: "8Gi"
commands:
  - "gunicorn --workers 8 --worker-class uvicorn.workers.UvicornWorker --bind 0.0.0.0:8000 app:app"

# config.yml - Development configuration
name: fraud-api-dev
environment:
  ENV_NAME: "development"
  LOG_LEVEL: "debug"
resources:
  cpu: "0.5"
  memory: "512Mi"
commands:
  - "gunicorn --workers 1 --worker-class uvicorn.workers.UvicornWorker --bind 0.0.0.0:8000 app:app"

Branch patterns are matched in the order they appear in [branch_to_environment]. Place specific patterns before wildcards to ensure correct matching.

Flow configs

Flows often use Metaflow’s Config to load JSON configuration files. There are two patterns for organizing configs:

Flow-local configs
Shared configs at project root

Place config files directly in the flow directory:

flows

train

flow.py

config.json

class TrainFlow(ProjectFlow):
    config = Config("config", default="config.json")  # Relative to the flow directory

This works out of the box; no additional configuration needed.

For configs shared across multiple flows, place them at the project root and register them in obproject.toml:

my_project

configs

model.json

training.json

flows

train

flow.py

evaluate

flow.py

[environments.production.flow_configs]
model_config = "configs/model.json"
training_config = "configs/training.json"

[environments.dev.flow_configs]
model_config = "configs/model.json"
training_config = "configs/training.json"

class TrainFlow(ProjectFlow):
    model_config = Config("model_config", default="configs/model.json")
    training_config = Config("training_config", default="configs/training.json")

The deploy script detects Config() declarations in each flow and passes corresponding paths from flow_configs, so project-root paths resolve correctly when deploying from flow subdirectories.

Only register configs in flow_configs when using project-root paths (like configs/model.json). Flow-local configs (like config.json in the same directory as flow.py) do not need registration.

For a complete example with multi-environment deployment and API clients, see the example repository:

outerbounds/ob-project-branch-config

To see how these building blocks fit together in a real-world project, continue to Example project.

Anaconda Platform

Getting Started

Platform Guides

Project structure

Flows

Writing a `ProjectFlow`

Deployments

Flows and deployments working together

Deployments in a project

Deployment commands

Code

Code for flows and deployments

Project-level shared libraries

Organization-level libraries

Declaring dependencies

Assets

Local development

Running flows locally

Skipping dependency isolation

CI/CD integration

Multi-project repositories

Branch configurations

Flow configs

​Flows

​Writing a ProjectFlow

​Deployments

​Flows and deployments working together

​Deployments in a project

​Deployment commands

​Code

​Code for flows and deployments

​Project-level shared libraries

​Organization-level libraries

​Declaring dependencies

​Assets

​Local development

​Running flows locally

​Skipping dependency isolation

​CI/CD integration

​Multi-project repositories

​Branch configurations

​Flow configs

Flows

Writing a `ProjectFlow`

Deployments

Flows and deployments working together

Deployments in a project

Deployment commands

Code

Code for flows and deployments

Project-level shared libraries

Organization-level libraries

Declaring dependencies

Assets

Local development

Running flows locally

Skipping dependency isolation

CI/CD integration

Multi-project repositories

Branch configurations

Flow configs
