Anaconda Server enables you to create a local copy of a repository so users can access approved software components from a centralized on-premise or cloud location.

Mirrors are contained within channels in Anaconda Server. Therefore, you must have a channel established before you can create a mirror. Anaconda recommends channels contain only one mirror each to prevent conflicts between package sources and mirror filters. For more information on channels, see Channels and subchannels.

Allowlist the following URLs before attempting to mirror:

​
Mirror filters

Adding filters to your mirrors ensures that you only mirror the packages that you need in your channel. This ensures that everyone on your team is not only using the same packages, but also the same version of those packages for the same operating system architecture. You can also filter by license and common vulnerability and exposure (CVE) score/status to ensure that you are meeting your organization’s software security requirements. For more information about CVEs, see Common Vulnerabilities and Exposures (CVEs).

Filters can also be applied to channels, and can be applied in both standard and air-gapped environments.

The mirror filter should not contain configurations that will conflict with the channel filter. If you attempt to mirror packages of a type not allowed by the channel filter, no packages will be mirrored.

​
Creating a mirror

Mirroring via the graphical user interface (GUI) is the most common method for mirror creation.

When creating a mirror, Anaconda recommends that you freeze the channel, create your mirror, allow it to complete, then unfreeze the channel. For more information on freezing and unfreezing a channel, see Freezing/Unfreezing Channels.

To create a mirror:

  1. Log in to Anaconda Server as an administrator.

  2. Select a channel you want to contain your mirror.

  3. Freeze your channel.

  4. Select Mirror from the Actions dropdown, or select the Mirrors tab, then click Create a mirror to bring up the Create mirror form.

  5. Complete the Create mirror form.

  6. Allow the mirror time to complete.

  7. Unfreeze your channel.

​

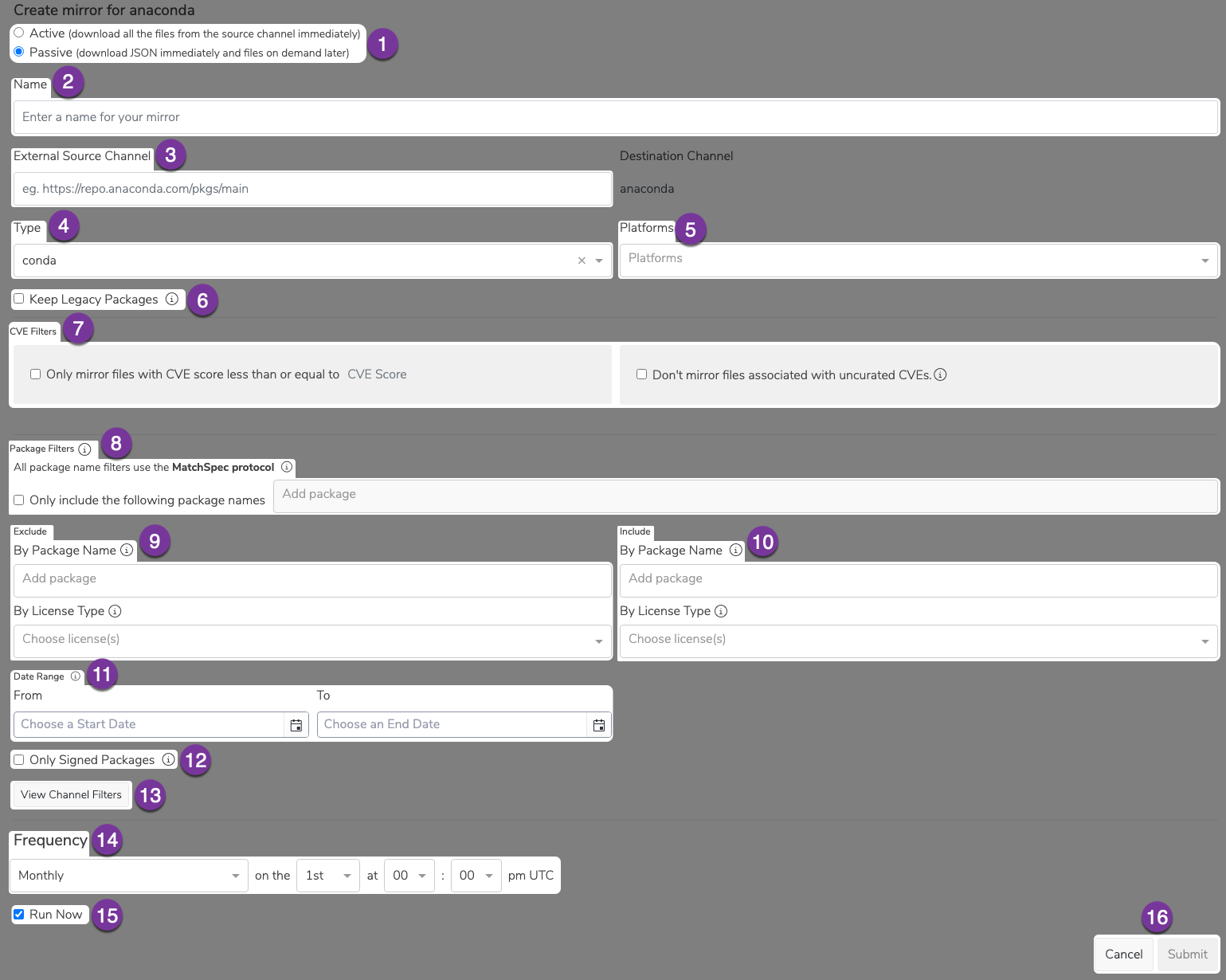

Create mirror form

The Create mirror form allows you to set the configurations for your mirror’s allowed packages. Let’s take a look at the different parts of the mirror form and what configurations they control.

  1. Mode

    Choose whether you want your mirror to be active or passive.

    Active mirroring

    Active mirroring will download all the packages not filtered out of your mirror immediately to your local server. These mirrors can be extremely large in size; the Anaconda’s public repository is 700GB, the conda-forge repository is 3TB, and the PyPI repository is 10TB in their entirety! Due to this, active mirrors can take a long time to complete.

    Passive mirroring

    Passive mirroring creates a metadata file that is a complete list of packages on the mirrored server. When a user needs a package, they can run conda install <PKG_NAME> and the requested package will be downloaded from the source at that time.

    Regardless of which mirror you choose to create, the packages will be the same. Anaconda recommends establishing your mirrors as passive.

  2. Name

    Enter a name for your mirror. Anaconda recommends you name your mirror something descriptive for your end users. For example: “main_channel_no_filters” or “approved_software”.

  3. External Source Channel

    This is the URL of the server/repository you want to mirror.

    Anaconda recommends creating mirrors for the following external source channels:

    If your external source channel is another Package Security Manager channel, you must use the format https://<URL>/api/repo/<CHANNEL_NAME>.

    If your external source channel is another Package Security Manager channel that contains CRAN R packages, you must use the format https://<URL>/api/repo/<CHANNEL_NAME>/cran.

    If your external source channel is a virtual channel from Package Security Manager (Cloud), you must use the format https://repo.anaconda.cloud/repo/t/<TOKEN>/<ORG_ID>/<CHANNEL_NAME>.

    If your external source channel is one of the Anaconda Channels or Community Package Channels from Package Security Manager (Cloud), you must use the format https://repo.anaconda.cloud/t/<TOKEN>/repo/<CHANNEL_NAME>.

    When creating mirrors that use Package Security Manager (Cloud) channels as the external source, replace <TOKEN> with your organization access token, and <ORG_ID> with your organization ID.

  4. Type

    Set the type of packages that will be mirrored from the external source channel. This should align with the selection on the Create Channel form. Packages in this mirror that do not match the channel package type will be filtered out.

    You can choose from conda, standard python, or standard R package types. Make sure you have allowlisted the URLs listed at the top of this page before creating mirrors.

  5. Platforms

    The same packages exist within the repository for multiple platforms. You can restrict the packages in your mirror to those that work with the platforms selected here. Anaconda recommends you always include the noarch platform as well as the specific platforms necessary for your organization, as many platform-specific packages will require a noarch dependency to run.

    The most common platform selections are:

    • win-64
    • linux-64
    • osx-64
    • osx-arm64

    Standard python and standard R mirror forms are slightly different from conda mirrors, and do not include this field.

  6. Legacy Packages

    Check the Keep Legacy Packages box to mirror both .conda and .tar.bz2 package files. These are different file types of the same packages, and will effectively double your necessary storage space (only available for conda package types).

  7. CVE Filters

    Choose to restrict packages by common vulnerability and exposure (CVE) score or by curation status.

    CVE filters are only available for conda type mirrors.

  8. Package Filters

    If you know the specific packages you want your mirror to contain by name, you can select the only include the following package names checkbox and list the packages you want your mirror to contain individually. Enter the name of the package you want to include in your mirror and press the tab key, then enter the next package name, and so on. Click the info icon to see examples of how to utilize MatchSpec protocol to specify packages.

    If the list of packages you want to provide your users is both very specific and very large, consider creating your mirror via the CLI to save time and effort! For information on mirroring via the CLI, see Anaconda Server CLI.

    Populating your channel with packages in this manner will not automatically populate the channel with their dependencies. If you do not have all the necessary packages, you will not be able to successfully create an environment from the channel with conda.

  9. Exclude Packages

    If you know of specific packages you want to exclude from your mirror, you can filter them out here. Enter the name of the package you want to exclude from your mirror and press the tab key, then enter the next package name, and so on.

    You can also exclude packages based on their license type. Open the dropdown selection and choose a license to exclude from your mirror. If you need to exclude multiple license types, open the dropdown menu again and select another license type to add to the filter. For more information on licenses, see License types.

    Packages can be excluded against non-exact values by including wildcard * and >/< ranges–where supported. For example, if you choose to exclude the package p*, Anaconda Server will exclude all packages that start with the letter “p”. For more information about using non-exact value search queries, see Package match specifications.

  10. Include Packages

    The include packages filter works in tandem with the exclude packages filter. You can choose to include specific packages that would otherwise be removed by the exclude packages filter by listing them here.

    Following from the example above, to include python in your mirror, you must add it here to explicitly include that package, because all packages starting with the letter “p” were excluded by the exclude filter.

  11. Date Range

    Instruct the mirror to only include packages that were built within the range selected.

  12. Only Signed Packages

    Select this checkbox to only mirror packages with Anaconda signatures from the source mirror. The source mirror must be an Anaconda Business channel.

  13. View Channel Filters

    View the filters that are applied to your channel. Avoid setting filters in your mirror that will be counteracted by your channels filters.

  14. Frequency

    Set the frequency you want your mirror to run and update your packages. The default value instructs the mirror to update at midnight on the first day of every month.

    Custom frequencies use cron expressions to determine when they run.

    Mirroring large channels can take several hours. Anaconda recommends against setting a frequency greater than daily to avoid collisions between currently running and updating mirrors.

  15. Run Now

    Check this box to start your mirror when you click Submit. If the Run Now box is not checked, your mirror will run the next time its frequency configuration instructs it to do so.

  16. Cancel/Submit

    Select Cancel at any time to quit your mirror form completion and discard any set parameters. Select Submit to save your mirror. If the Run Now box was not checked, your mirror will run the next time its frequency configuration instructs it to do so.

​
Editing mirrors

The Edit mirror form contains the information used in the Create mirror form.

  1. From the My Channels page, click on your mirror’s actions icon, then click Edit to view the Edit mirror form.

  2. Make the changes you’d like implemented, then click Submit. If the Run Now box is not checked, your mirror will run the next time its frequency configuration instructs it to do so.

You cannot edit the mode of an established mirror.

​
Viewing mirror history

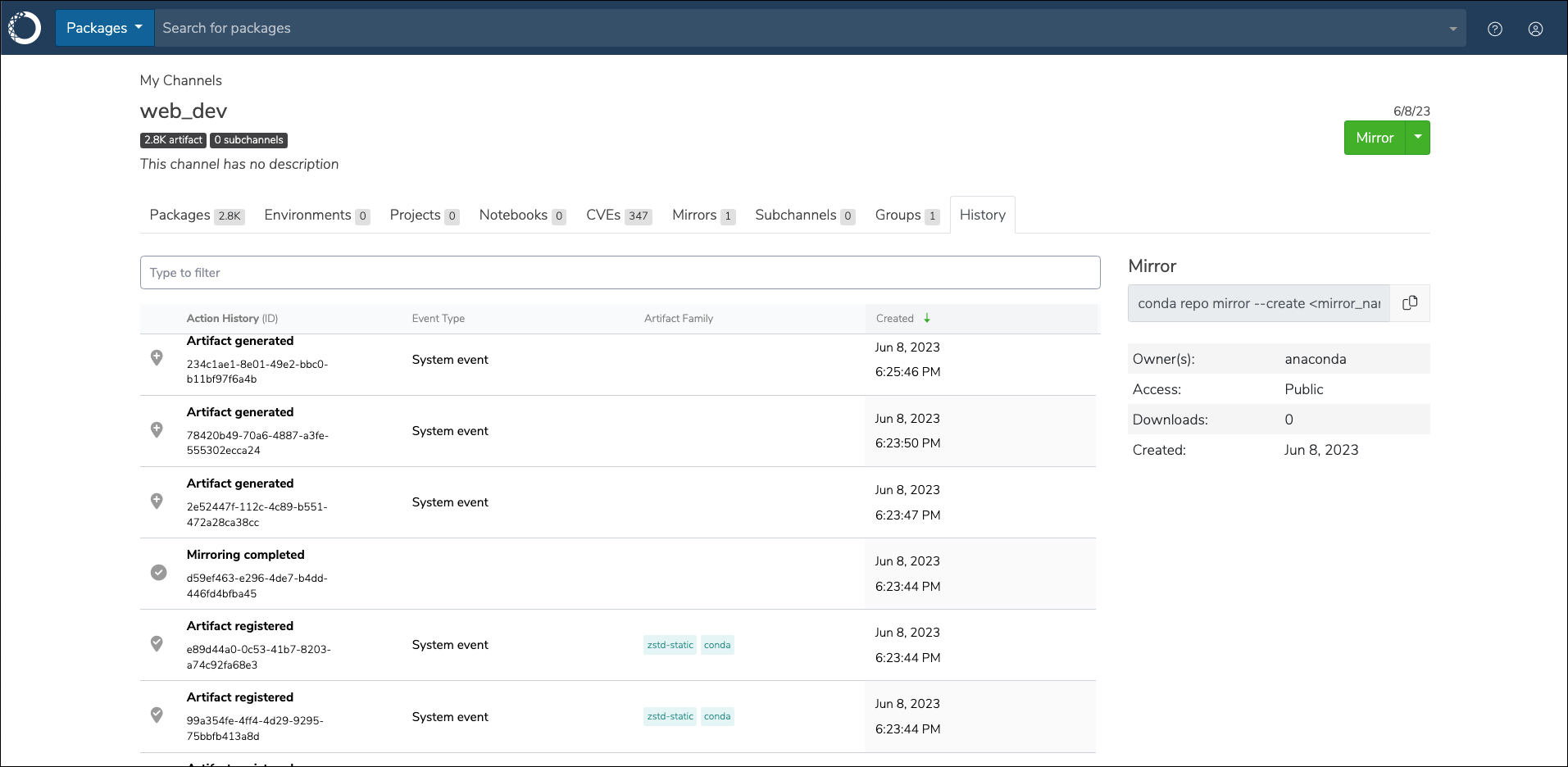

Mirroring events/actions can be viewed from the channel’s History tab. Events are listed in chronological order by default and include the event ID, type, artifact family (if applicable), and the date/time the event occurred. Select any historical event to view its metadata.

Historical events for mirrors are as follows:

  • Mirror created
  • Mirror started
  • Mirror completed
  • Mirror failed
  • Mirror stopped
  • Mirror restarted
  • Mirror deleted
  • Artifact registered
  • Artifact generated
  • Artifact removed
  • Artifact metadata updated

​
Viewing all repository mirrors

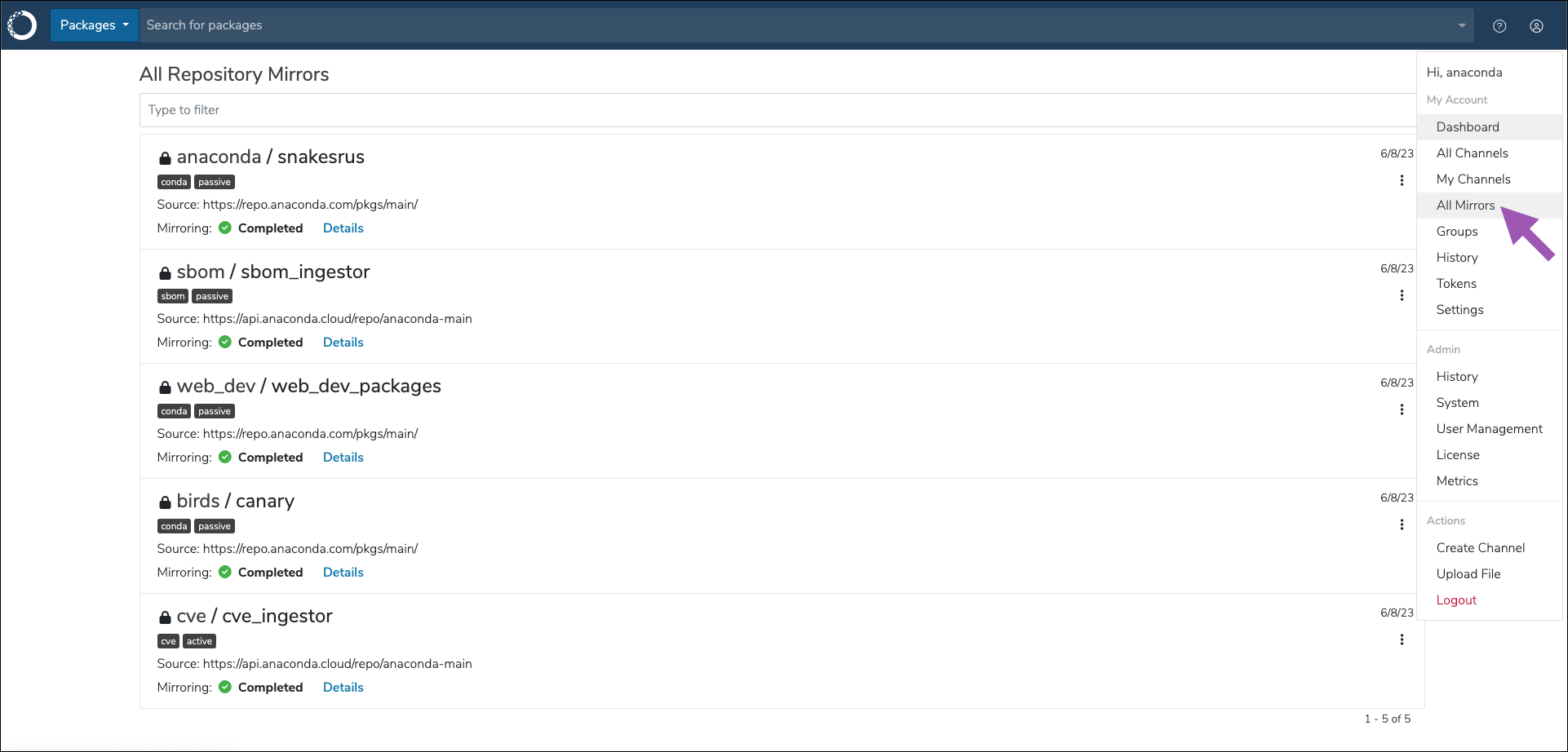

View mirror progress and results globally for all users from the All Repository Mirrors page.

This page is available only to users whose role in Keycloak has the mirror attribute set to manage.

​
Viewing mirror status

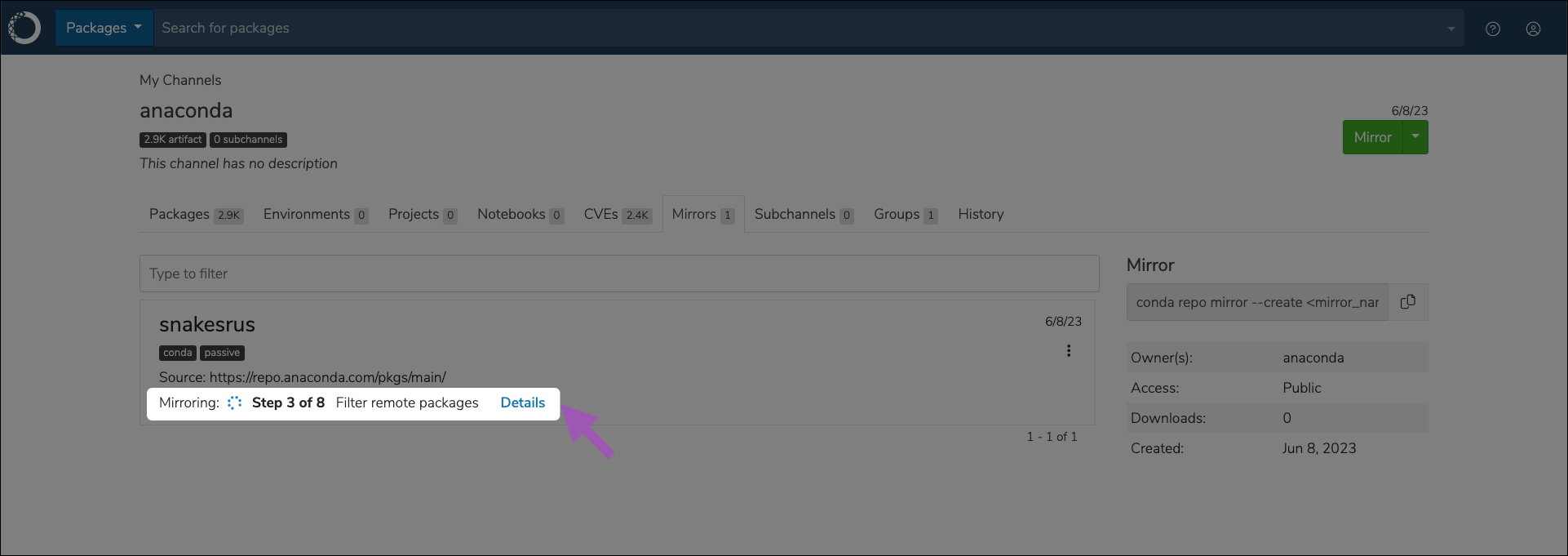

Mirror status can be viewed from either the channel’s Mirrors tab or the All Repository Mirrors page. In progress mirrors display which step is currently being performed with a brief description of the operation.

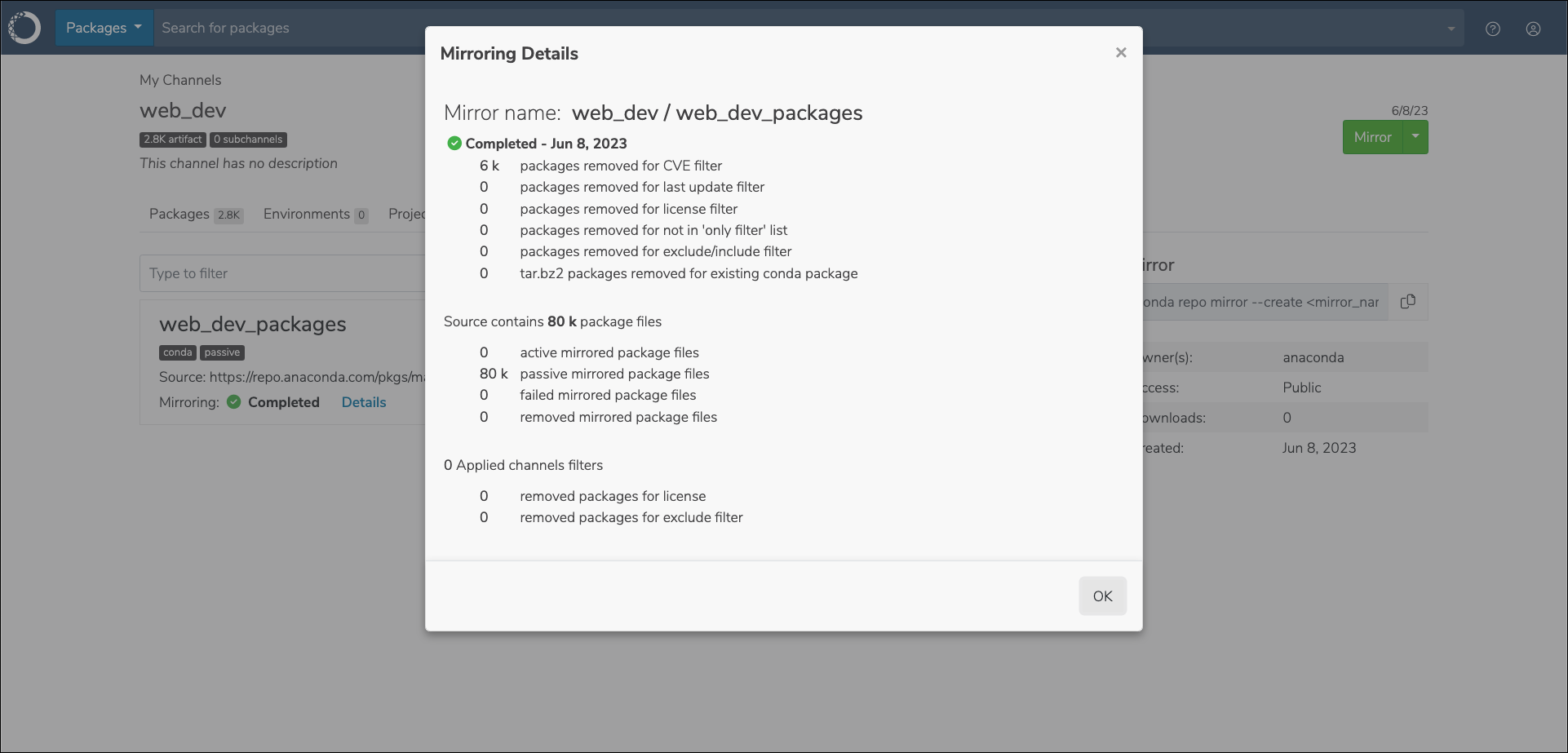

Click Details to get statistics about packages in your mirror. The Mirroring Details modal shows you information like when the mirror completed or failed, how many packages were filtered out of your mirror from its source, and for what reason (applied mirror/channel filters). It also shows how many packages were mirrored, how they were mirrored, how many failed to mirror properly, and how many have been removed from the mirror.

​
Stopping and restarting a mirror

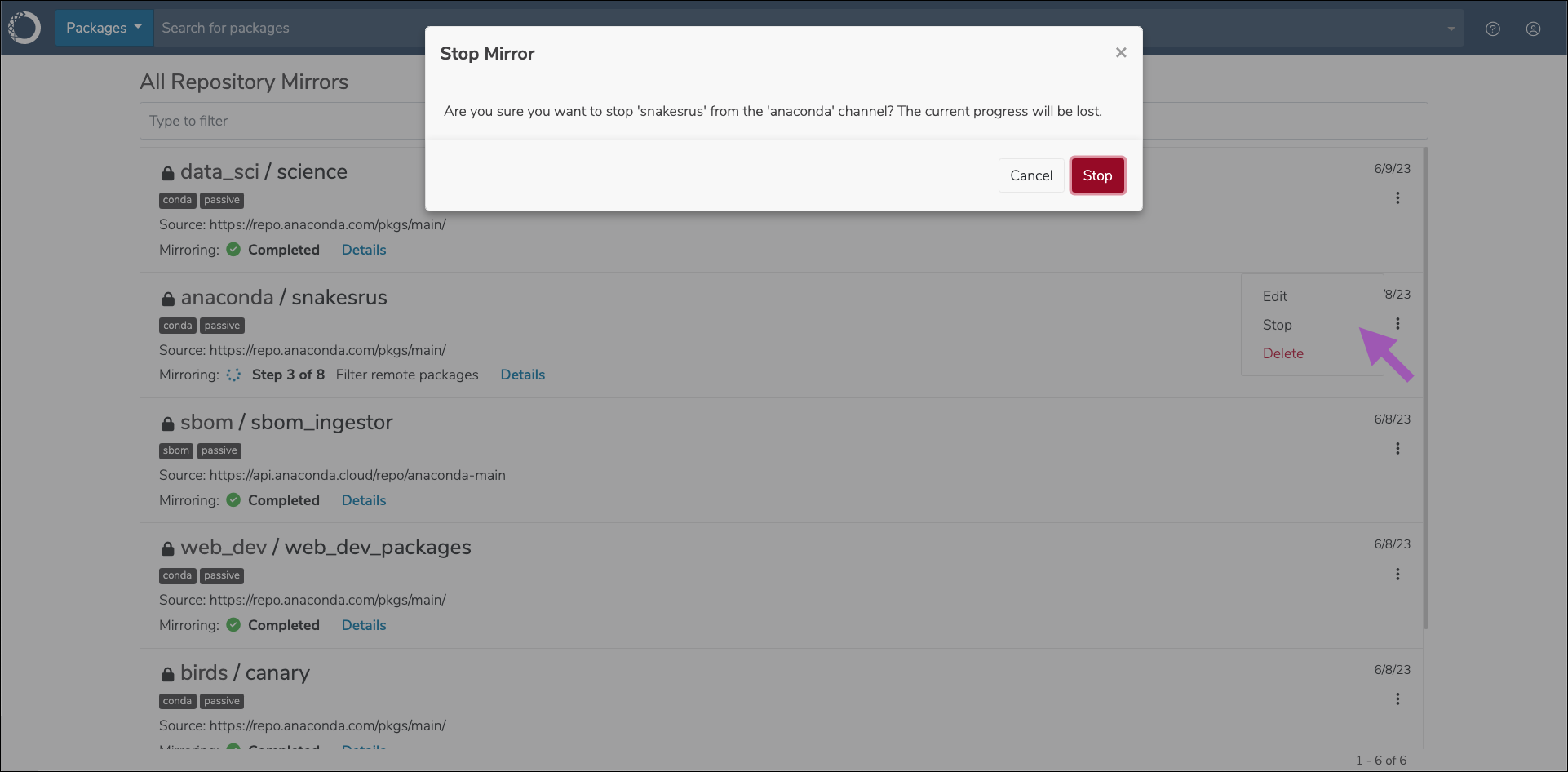

You can stop a running mirror from its channel’s Mirrors tab or the All Repository Mirrors page.

Click on the mirror’s actions icon, select Stop, and then confirm you want to stop your mirror.

It can take up to 10 minutes for a mirror to fully stop. A mirror in the process of stopping will display Stopping as its mirroring status. Once it is complete, it will display Stopped as its status. Stopping a mirror does not discard the progress the mirror has made, and some packages may appear in your channel’s Packages tab.

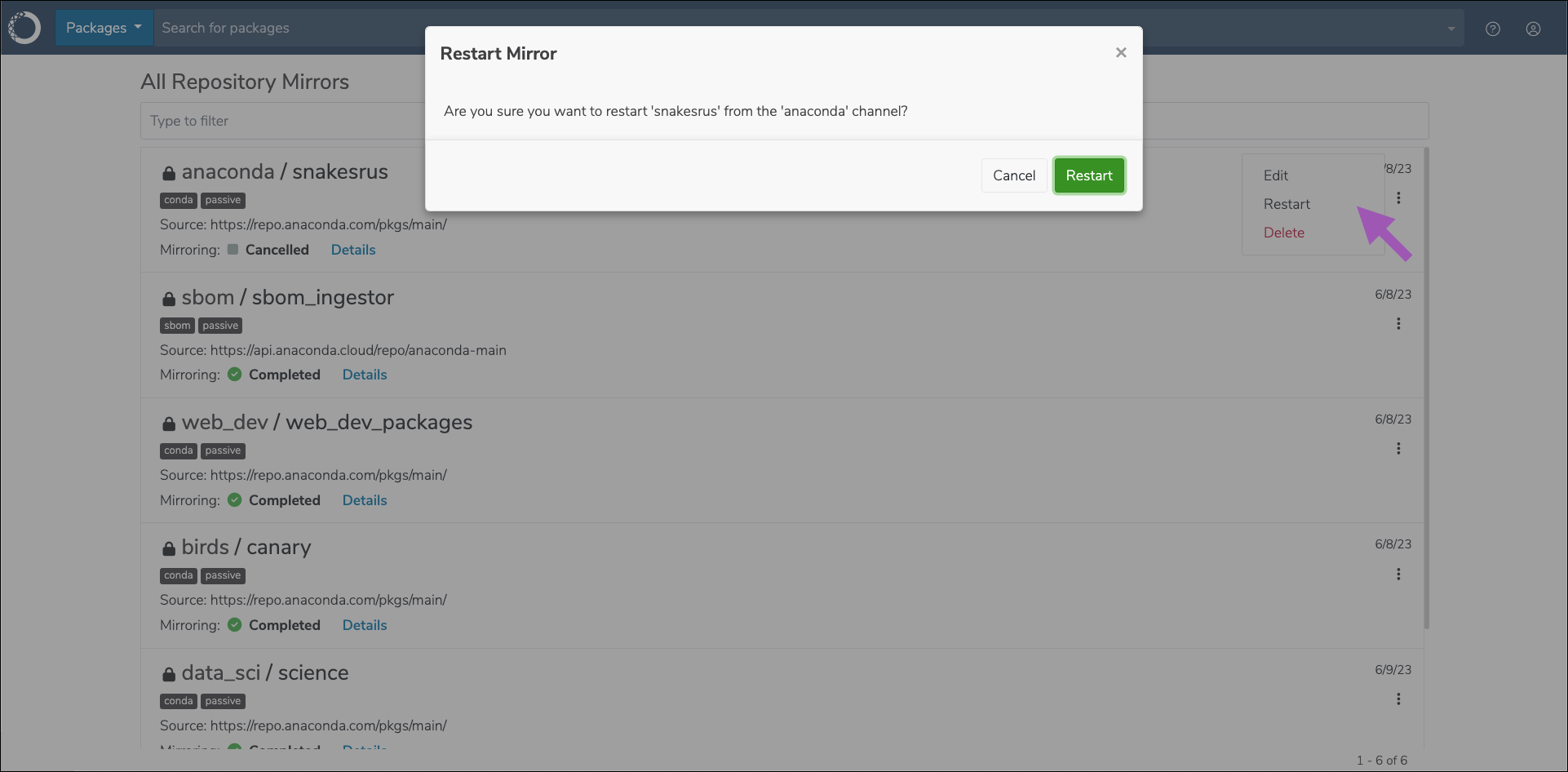

You can restart a stopped mirror from its channel’s Mirrors tab or from the All Repository Mirrors page.

Click on the mirror’s actions icon, select Restart, and then confirm you want to restart your mirror.

The restart option is only available for mirrors that have been stopped. Mirrors that have failed or completed must be run from the Edit mirror page. Restarted mirrors run from the beginning of the mirroring process, not from where you stopped the run.

​
Deleting a mirror

You can delete a mirror from its channel’s Mirrors tab or the All Repository Mirrors page.

Click on the mirror’s actions icon, select Delete, and then confirm you want to delete your mirror.
